Description

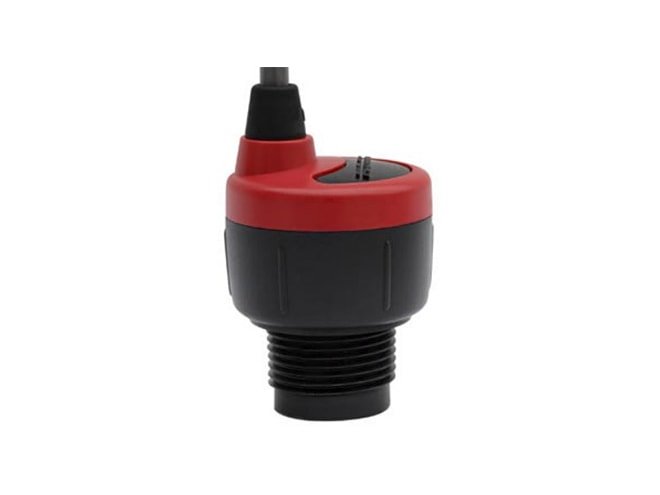

The Flowline DS14 EchoPod is an innovative level sensor that replaces floats, conductance and pressure sensors that fail due
to dirty, sticking and scaling media in small tanks 49.2″ (1.25 m) or less. The EchoPod is a general purpose sensor that provides
non-contact switch and control capabilities in one package. Maintenance free, the EchoPod reduces tank system hardware through
simplicity and consolidation. The EchoPod provides a total solution for fluid handling and automation.
The Flowline DS14 EchoPod enables flexible design applications for system integration or retrofit. The EchoPod is well suited for
fluid handling and chemical feed applications that integrate process or control automation of
small tanks mounted on tools, skids or machines. The rugged PVDF enclosure is well suited for a wide range of corrosive, waste
or slurry type media, and can be broadly selected for atmospheric day tank, process vessel or dispenser, pump lift station and
waste sump applications.
The Flowline DS14 EchoPod includes WebCal Software which provides simple software configuration– using USB connectivity– which enables
flexible system integration
or retrofit for suitable applications. WebCal’s user interface makes configuration quick and simple for even novice computer
users. By entering application requirements through pre-programed menus, WebCal will accurately configure the EchoPod to precise
application requirements every time. Additionally, WebCal provides a printed wiring schematic and file management system that
saves configurations for back-up, technical assistance or additional applications.
Flowline DS14 EchoPod Level Switch Specifications
Range
49.2″ (1.25 m)
Accuracy
0.125″ (3 mm)
Resolution
0.019″ (0.5 mm)
Beam width
2″ (5 cm)
Dead band
2″ (5 cm)
Supply voltage
12-24 VDC/VAC
Consumption
0.5W
Contact type
(4) SPST relays 1A
Relay fail-safety
Power loss: Hold last
Power on: Open, close or hold last
Hysteresis
Selectable
Configuration
WebCal, USB 2.0
Temperature compensation
Automatic over range
Process temperature
20° to 140°F; -7° to 60°C
Ambient Temperature
-31° to 140°F; -35° to 60°C
Pressure
MWP = 30 PSI
Enclosure
Type 6P encapsulated, corrosion resistant & submersible
Enclosure material
Polycarbonate
Strain relief material
Santoprene
Trans. material
PVDF
Cable length
48″ (1.2 m)
Cable jacket material
Polyurethane
Process mount
1″ NPT (1″ G)
Mounting gasket
Viton
Classification
General purpose
Approvals
CE, cFMus
