Description

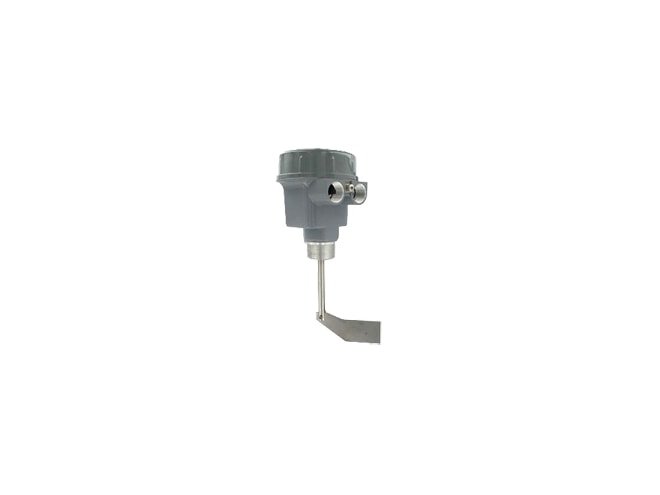

The Proximity PLS2 is an electromechanical level switch designed for level monitoring of bulk materials. The rotating measuring vane is driven by a brushless
synchronous motor at one revolution per minute. As product builds up, the paddle rotation is impeded and the resulting motor torque activates the output switch
and stops the motor. A spring mechanism reactivates the motor and returns the switch to normal state when the material no longer impedes the paddle rotation.
A torque adjusting mechanism eliminates the need for different sized paddles. The PLS2 is designed with the industry standard 1-1/4″ male NPT connection and
unit can be side or top mounted.
